Processor | |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Processor socket | BGA 1170 |
Memory | |
Memory slots type | DIMM |
Maximum internal memory | 128 GB |
Number of memory slots | 4 |
Non-ECC | Y |
Supported memory clock speeds | 2133.2400.2666.2933.3000.3200.3300.3333.3400.3466.3600.3666.3733.3800.3866.4000.4133.4266.4300.4400.4500.4600.4700.4800.4933.5000.5133.5333 MHz |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Unbuffered memory | Y |
Network | |
Ethernet LAN | Y |
Wi-Fi | N |
Ethernet interface | 2.5 Gigabit Ethernet |
Technical details | |
Vendor | Gigabyte |
Packaging content | |
Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Expansion slots | |
PCI Express x16 (Gen 3.x) slots | 2 |
Number of M.2 (M) slots | 3 |
PCI Express x16 (Gen 4.x) slots | 1 |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | EFI AMI |
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
ACPI version | 5.0 |
Clear CMOS jumper | Y |
Weight & dimensions | |
Width | 305 mm |
Depth | 244 mm |
Graphics | |
Maximum resolution | 4096 x 2304 pixels |
HDCP | Y |
Graphics card | HD Graphics |
Graphics card family | Intel |
On-board graphics card model | Intel® HD Graphics |
On-board graphics card | Y |
Features | |
Motherboard form factor | ATX |
Audio output channels | 7.1 channels |
Motherboard chipset | Intel B760 Express |
PC health monitoring | Fan, Temperature, Voltage, Water cooling |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Motherboard chipset family | Intel |
Component for | PC |
Internal I/O | |
Audio connector | Y |
Front panel connector | Y |
USB 2.0 connectors | 4 |
S (B 2.0 connectors – PDIF out connector – S power connector (8-pin) – B 3.2 Gen 1 (3.1 Gen 1) connectors – mber of SATA III connectors – rial port headers) | 4 – Y – Y – 2 – 4 – 1 |
CPU fan connector | Y |
ATX Power connector (24-pin) | Y |
Number of chassis fan connectors | 3 |
Front panel audio connector | Y |
TPM connector | Y |
RGB LED pin header | Y |
EPS power connector (8-pin) | Y |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 4 |
Serial port headers | 1 |

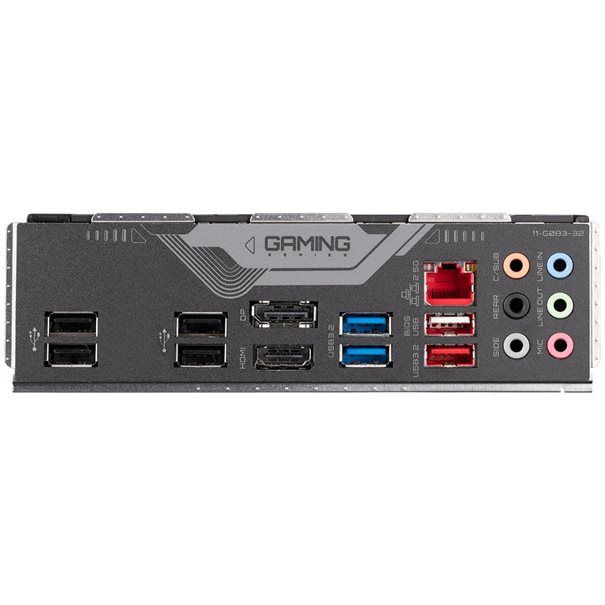

Rear panel I/O ports | |
DisplayPort version | 1.2 |
USB connector type | USB Type-A, USB Type-C |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 2.0 ports quantity | 5 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.0 |
DisplayPorts quantity | 1 |
Storage controllers | |
RAID levels | 0, 1, 5, 10 |
Supported storage drive types | HDD & SSD |
Storage interfaces | PCI Express 4.0, SATA III |
Number of HDDs supported | 4 |
RAID support | Y |
