Processor | |
Processor manufacturer | AMD |
Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
Processor socket | Socket AM4 |
Memory | |
Memory slots type | DIMM |
Maximum internal memory | 128 GB |
Number of memory slots | 4 |
Supported memory clock speeds | 2133.2400.2666.2800.3000.3200.3333.3466.3600.3733.3866.4100.4133.4400.4466.4600.4800 MHz |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Unbuffered memory | Yes |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface | Gigabit Ethernet |
Technical details | |
Vendor | Asustek |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
Number of M.2 (M) slots | 1 |
BIOS | |
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
Width | 244 mm |
Depth | 244 mm |
Graphics | |
Parallel processing technology support | Not supported |
Features | |
Motherboard form factor | micro ATX |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC887 / Realtek ALC897 |
Motherboard chipset | AMD A520 |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset family | AMD |
Component for | PC |
Internal I/O | |
12V power connector | Yes |
USB 2.0 connectors | 2 |
S (B 2.0 connectors – PDIF out connector – S power connector (8-pin) – B 3.2 Gen 1 (3.1 Gen 1) connectors – mber of SATA III connectors) | 2 – Yes – Yes – 1 – 4 |
CPU fan connector | Yes |
Number of COM connectors | 1 |
ATX Power connector (24-pin) | Yes |
Number of chassis fan connectors | 2 |
Front panel audio connector | Yes |
TPM connector | Yes |
RGB LED pin header | Yes |
EPS power connector (8-pin) | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 4 |

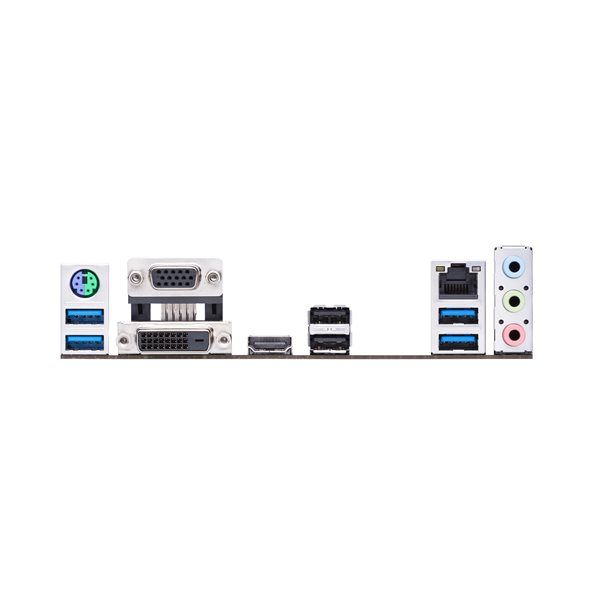

Rear panel I/O ports | |
PS (2 ports quantity) | 1 |
USB connector type | USB Type-A |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
Microphone in | Yes |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
Storage controllers | |
RAID levels | 0, 1, 10 |
Supported storage drive types | HDD & SSD |
Storage interfaces | M.2, SATA III |
Number of HDDs supported | 4 |
RAID support | Yes |
Number of storage drives supported | 5 |
