Για τιμές χονδρικής ,έκπτωση έως και 20%

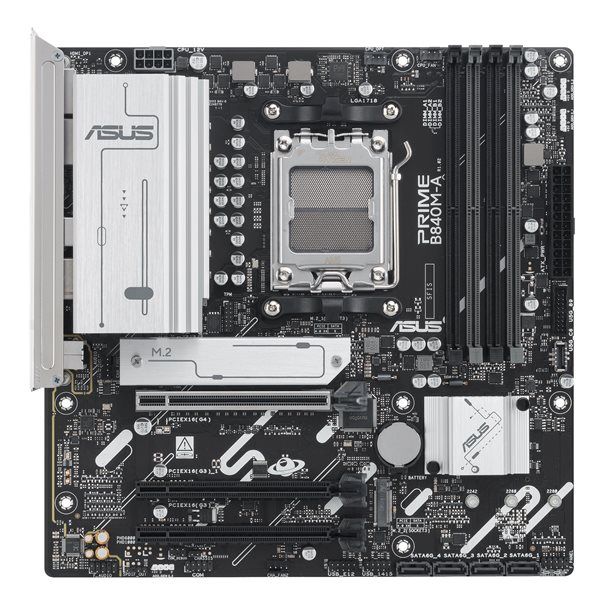

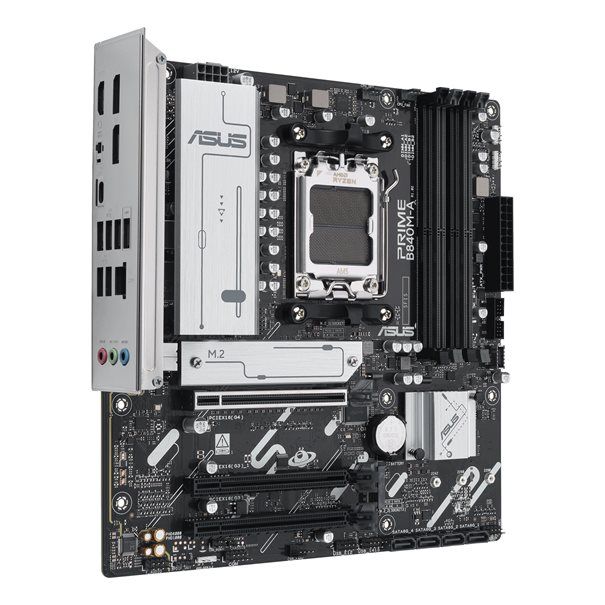

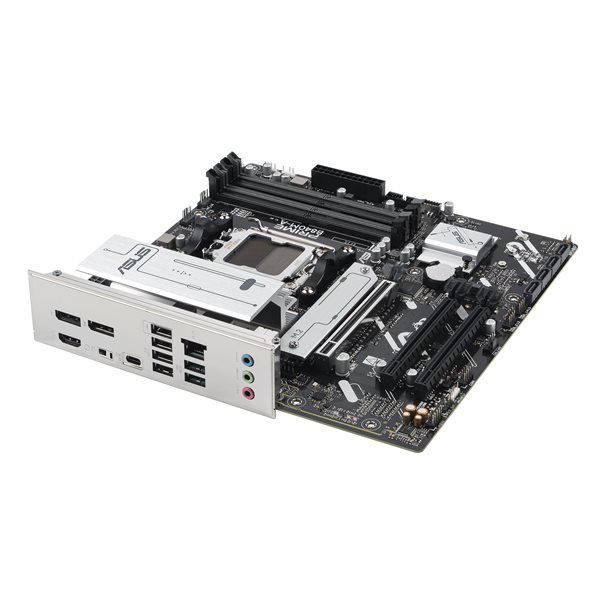

ASUS PRIME B840M-A-CSM AM5 B840/2xDP-HDMI/3xM.2/µATX
226,24 € με ΦΠΑ
ASUS PRIME B840M-A-CSM AM5 B840/2xDP-HDMI/3xM.2/µATX
95 σε απόθεμα
Συνδέσου για τιμές χονδρικής
Διαθέσιμο
Παράδοση 4 έως 10 εργάσιμες ημέρες
Περιγραφή
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 192 GB |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface | 2.5 Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Screws included | Yes |
| Cables included | SATA |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Other features | |
| Quick installation guide | Yes |
| Weight | 910 g |
| Graphics | |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Features | |
| Motherboard form factor | micro ATX |
| Product colour | Grey |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B840 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| USB 2.0 connectors | 2 |
| S (B 3.2 Gen 2 (3.1 Gen 2) connectors – B 2.0 connectors – PDIF out connector – mber of EPS power connectors (8-pin) – S power connector (8-pin) – B 3.2 Gen 1 (3.1 Gen 1) connectors – mber of SATA III connectors) | 0 – 2 – Yes – 1 – Yes – 2 – 4 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |

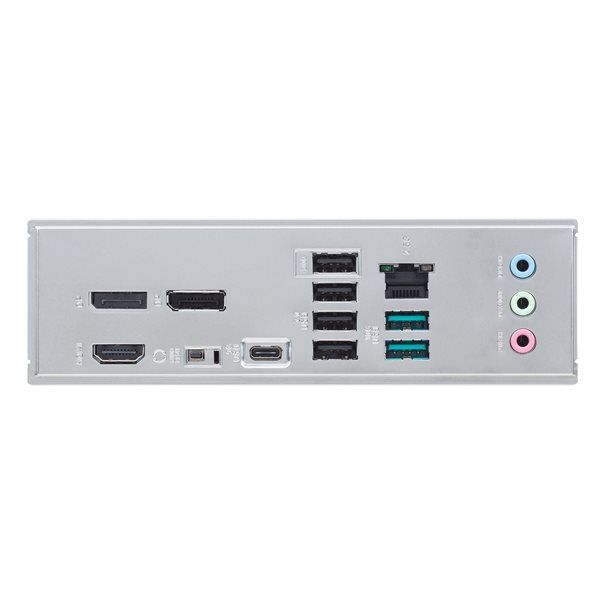

| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Packaging data | |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package width | 275 mm |
| Package weight | 1450 g |
