Processor | |
Processor manufacturer | AMD |
Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD Ryzen 9 9th Gen |
Processor socket | Socket AM5 |
Supported processor sockets | Socket AM5 |
Memory | |
Memory slots type | DIMM |
Maximum internal memory | 192 GB |
Number of memory slots | 4 |
Supported memory clock speed (max) | 8000 MHz |
ECC сompatibility | ECC & Non-ECC |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Unbuffered memory | Yes |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface | 2.5 Gigabit Ethernet |
Technical details | |
Vendor | Asustek |

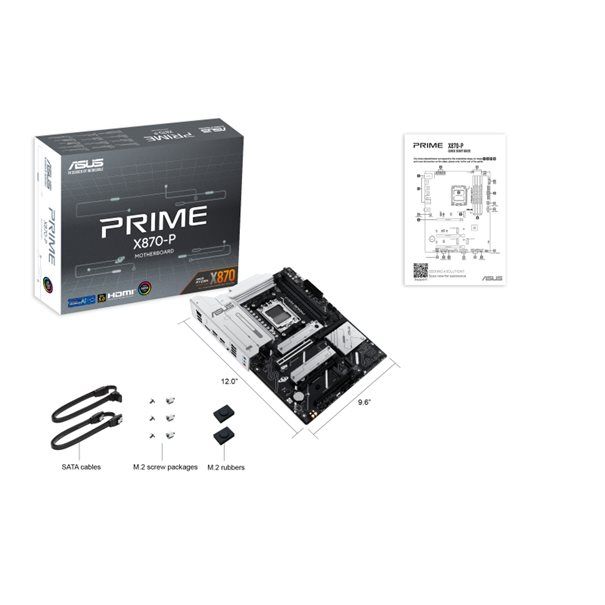

Packaging content | |
Cables included | SATA |
Expansion slots | |
Number of M.2 (M) slots | 4 |
PCI Express x16 (Gen 4.x) slots | 2 |
PCI Express x16 (Gen 5.x) slots | 1 |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
Height | 48 mm |
Width | 305 mm |
Depth | 244 mm |
Other features | |
Back-to-BIOS button | Yes |
Weight | 1440 g |
Graphics | |
Parallel processing technology support | Not supported |
On-board graphics card | No |
Features | |
Motherboard form factor | ATX |
Product colour | Black |
Audio output channels | 7.1 channels |
Motherboard chipset | AMD X870 |
Cooling type | Passive |
Windows operating systems supported | Windows 10, Windows 11 |
Power source type | ATX |
Motherboard chipset family | AMD |
Component for | PC |
Internal I/O | |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
12V power connector | Yes |
USB 2.0 connectors | 2 |
CPU fan connector | Yes |
Number of COM connectors | 1 |
ATX Power connector (24-pin) | Yes |
Number of chassis fan connectors | 4 |
Front panel audio connector | Yes |
TPM connector | Yes |
RGB LED pin header | Yes |
EPS power connector (8-pin) | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 2 |

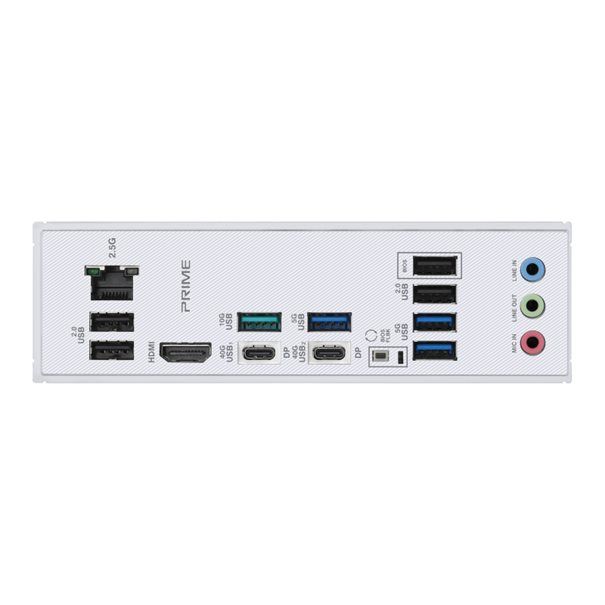

Rear panel I/O ports | |
DisplayPort version | 1.4a |
Line-in | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
Microphone in | Yes |
HDMI ports quantity | 1 |
USB4 Gen 2×2 ports quantity | 2 |
HDMI version | 2.1 |
Storage controllers | |
RAID levels | 0, 1, 5, 10 |
Supported storage drive types | HDD & SSD |
Storage interfaces | M.2, SATA III |
Number of HDDs supported | 2 |
RAID support | Yes |
Number of storage drives supported | 6 |
Packaging data | |
Package depth | 273 mm |
Package height | 68 mm |
Package width | 353 mm |
Package weight | 1500 g |
