Processor | |
Processor manufacturer | AMD |
Maximum number of SMP processors | 1 |
Compatible processor series | AMD Athlon, AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, 3rd Generation AMD Ryzen 9 |
Processor socket | Socket AM4 |
Memory | |
Memory slots type | DIMM |
Maximum internal memory | 128 GB |
ECC | Y |
Number of memory slots | 4 |
Supported memory clock speeds | 2133.2400.2666.2800.3000.3200.3333.3466.3600.3733.3866.4000.4133.4266.4400.4466.4600.4800 MHz |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Unbuffered memory | Y |
Network | |
Ethernet LAN | Y |
Wake-on-LAN ready | Y |
LAN controller | Realtek RTL8111H |
Ethernet interface | Gigabit Ethernet |
Technical details | |
Vendor | Asustek |
Packaging content | |
Cables included | SATA |
Drivers included | Y |
Expansion slots | |
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI slots | 1 |
PCI Express x4 slots | 1 |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Clear CMOS jumper | Y |
Weight & dimensions | |
Width | 244 mm |
Depth | 244 mm |
Graphics | |
Parallel processing technology support | Not supported |
Features | |
Motherboard form factor | micro ATX |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC887 / Realtek ALC897 |
Motherboard chipset | AMD B550 |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset family | AMD |
Component for | PC |
Internal I/O | |
Thunderbolt headers | 1 |
12V power connector | Y |
USB 2.0 connectors | 2 |
CPU fan connector | Y |
Number of COM connectors | 1 |
ATX Power connector (24-pin) | Y |
Number of EATX power connectors | 1 |
Chassis intrusion connector | Y |
Number of chassis fan connectors | 2 |
Front panel audio connector | Y |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 4 |

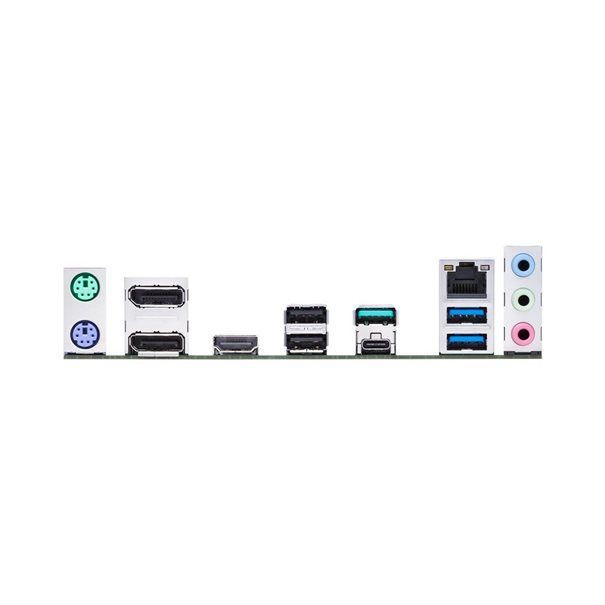

Rear panel I/O ports | |
PS (2 ports quantity) | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 2 |
Storage controllers | |
RAID levels | 0,1,10 |
Supported storage drive types | HDD & SSD |
Storage interfaces | Serial ATA III |
