Processor | |
Processor manufacturer | AMD |
Processor socket | Socket AM5 |
Supported processor sockets | Socket AM5 |
Memory | |
Memory slots type | DIMM |
Maximum internal memory | 192 GB |
ECC | Yes |
Number of memory slots | 4 |
Non-ECC | Yes |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Unbuffered memory | Yes |
Network | |
Ethernet LAN | Yes |
Bluetooth | 5.4 Yes |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi | Yes |
Wi-Fi standards | Wi-Fi 7 (802.11be) |
Ethernet interface | 2.5 Gigabit Ethernet |
Technical details | |
Vendor | Asustek |
Packaging content | |
Cables included | SATA |
Expansion slots | |
Number of M.2 (M) slots | 4 |
PCI Express x16 (Gen 4.x) slots | 2 |
PCI Express x16 (Gen 5.x) slots | 1 |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Clear CMOS button | Yes |
Weight & dimensions | |
Width | 305 mm |
Depth | 244 mm |
Graphics | |
Parallel processing technology support | Not supported |
Features | |
Motherboard form factor | ATX |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC4080 |
Motherboard chipset | AMD X870 |
Windows operating systems supported | Windows 11 |
Motherboard chipset family | AMD |
Component for | PC |
Internal I/O | |
12V power connector | Yes |
USB 2.0 connectors | 2 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Chassis intrusion connector | Yes |
Number of chassis fan connectors | 5 |
Front panel audio connector | Yes |
USB 3.2 Gen 2×2 connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 2 |

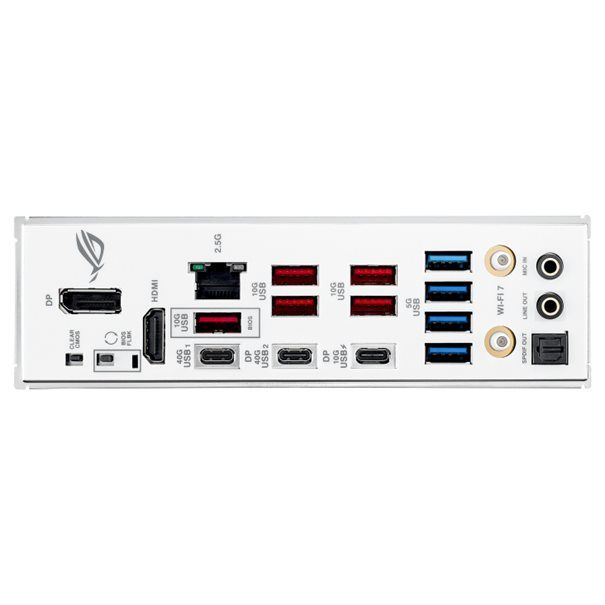

Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Headphone outputs | 1 |
Microphone in | Yes |
S (B 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity – B 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity – B 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity – PDIF out port – B4 Gen 2×2 ports quantity) | 4 – 5 – 1 – Yes – 2 |
WiFi-AP antenna jack | 1 |
HDMI ports quantity | 1 |
USB4 Gen 2×2 ports quantity | 2 |
DisplayPorts quantity | 1 |
Storage controllers | |
RAID levels | 0, 1, 10, 5 |
Supported storage drive types | HDD & SSD |
Storage interfaces | M.2, SATA III |
Number of HDDs supported | 2 |
RAID support | Yes |
Number of storage drives supported | 6 |
