Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel® Pentium®, Intel Xeon E |
Processor socket | LGA 1200 |
Memory | |
Memory slots type | DIMM |
Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
Maximum internal memory | 64 GB |
Number of memory slots | 2 |
Supported memory clock speeds | 2666.2933.3200 MHz |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Network | |
Ethernet LAN | Y |
LAN controller | Intel® I210-AT |
Wi-Fi | N |
Technical details | |
Vendor | Asustek |
Expansion slots | |
Number of M.2 (M) slots | 1 |
PCI Express x16 slots | 1 |
Weight & dimensions | |
Width | 170 mm |
Depth | 170 mm |
Graphics | |
Graphics card | AST2600 |
Graphics card family | ASPEED |
On-board graphics card memory | 64 MB |
Features | |
Motherboard form factor | ATX |
Motherboard chipset | Intel C252 |
Motherboard chipset family | Intel |
Component for | Server |
Logistics data | |
Harmonized System (HS) code | 84733020 |
Operational conditions | |
Operating temperature (T-T) | 10 – 50 °C |
Storage relative humidity (H-H) | 20 – 90 % |
Storage temperature (T-T) | -40 – 70 °C |
Internal I/O | |
ATX Power connector (24-pin) | Y |
Chassis intrusion connector | Y |
Number of chassis fan connectors | 2 |
TPM connector | Y |
EPS power connector (8-pin) | Y |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 6 |
Serial port headers | 1 |

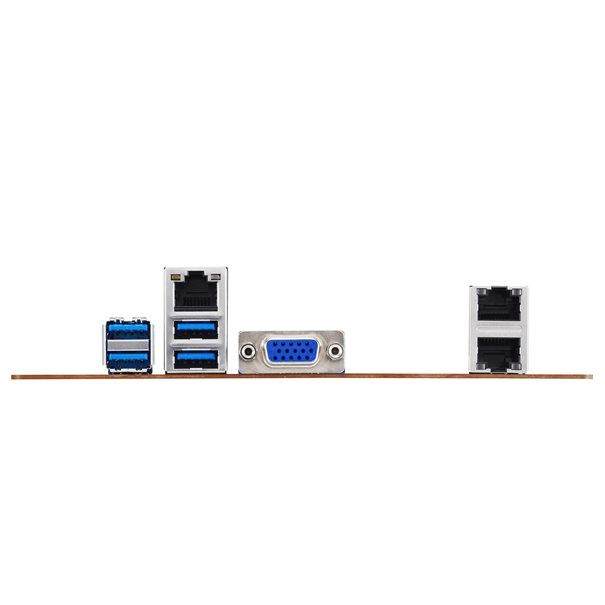

Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 3 |
VGA (D-Sub) ports quantity | 1 |
Number of SAS ports | 2 |
Storage controllers | |
Storage interfaces | M.2, SATA III |
Packaging data | |
Package weight | 1100 g |
