Processor | |
Processor manufacturer | AMD |
Maximum number of SMP processors | 1 |
Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
Maximum internal memory supported by processor | 64 GB |
Processor socket | Socket AM4 |
Supported processor sockets | Socket AM4 |
Memory | |
Memory slots type | DIMM |
Maximum internal memory | 64 GB |
ECC | Yes |
Number of memory slots | 2 |
Non-ECC | Yes |
Supported memory clock speeds | 2133.2400.2667.2933.3200.3333.3600.4000.4400.4600.4866.5000 MHz |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Network | |
Ethernet LAN | Yes |
Technical details | |
Vendor | Gigabyte |
Warranty period | 3 year(s) |
Packaging content | |
Batteries included | Yes |
BIOS | |
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
ACPI version | 5.0 |
Clear CMOS button | Yes |
Clear CMOS jumper | Yes |
Weight & dimensions | |
Height | 35 mm |
Width | 244 mm |
Depth | 205 mm |
Battery | |
Number of battery cells | 1 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Lithium weight per battery | 0.0700 g |
Battery weight | 3 g |
Battery type | CR2032 |
Graphics | |
HDCP | Yes |
Features | |
Motherboard form factor | micro ATX |
Audio output channels | 7.1 channels |
Motherboard chipset | AMD A520 |
Motherboard chipset family | AMD |
Component for | PC |
Logistics data | |
Products per shipping (inner) case | 1 pc(s) |
Harmonized System (HS) code | 84733020 |
Country of origin | China |
Internal I/O | |
USB 2.0 connectors | 2 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of chassis fan connectors | 2 |
Power fan connector | Yes |
RGB LED pin header | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 4 |

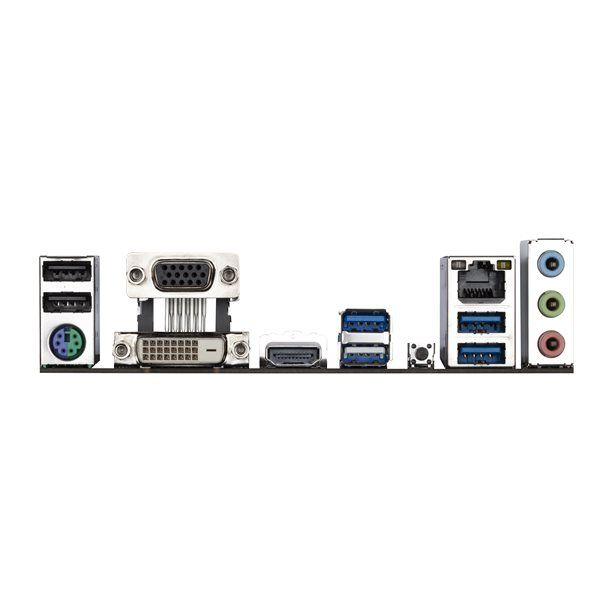

Rear panel I/O ports | |
PS (2 ports quantity) | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
VGA (D-Sub) ports quantity | 1 |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
Storage controllers | |
RAID levels | 0, 1, 10 |
Storage interfaces | M.2, PCI Express 3.0, SATA |
RAID support | Yes |
Packaging data | |
Package depth | 235 mm |
Package height | 52 mm |
Package width | 265 mm |
Package weight | 740 g |
