Processor | |
Processor manufacturer | AMD |
Maximum number of SMP processors | 1 |
Compatible processor series | AMD Ryzen™ 7 |
Processor socket | Socket AM5 |
Memory | |
Memory slots type | DIMM |
Maximum internal memory | 192 GB |
Number of memory slots | 4 |
Non-ECC | Yes |
Supported memory clock speeds | 8000. 7800. 7600. 7200. 7000. 6800. 6666. 6600. 6400. 6200. 6000. 5600. 5200. 4800. 4400 MHz |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Unbuffered memory | Yes |
Network | |
Ethernet LAN | Yes |
Bluetooth | 5.3 Yes |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
WLAN controller model | Realtek RTL8852CE |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Ethernet interface | 2.5 Gigabit Ethernet |
Technical details | |
Vendor | Gigabyte |
Packaging content | |
Cables included | SATA |
Drivers included | Yes |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
ACPI version | 5.0 |
Clear CMOS jumper | Yes |
Weight & dimensions | |
Width | 305 mm |
Depth | 244 mm |
Graphics | |
HDCP | Yes |
Features | |
Motherboard form factor | ATX |
Product colour | White |
Audio output channels | 7.1 channels |
Motherboard chipset | AMD B650 |
PC health monitoring | Fan, Temperature, Voltage |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Motherboard chipset family | AMD |
Component for | PC |
Internal I/O | |
Thunderbolt headers | 2 |
Front panel connector | Yes |
12V power connector | Yes |
USB 2.0 connectors | 2 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of chassis fan connectors | 4 |
Front panel audio connector | Yes |
RGB LED pin header | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 4 |

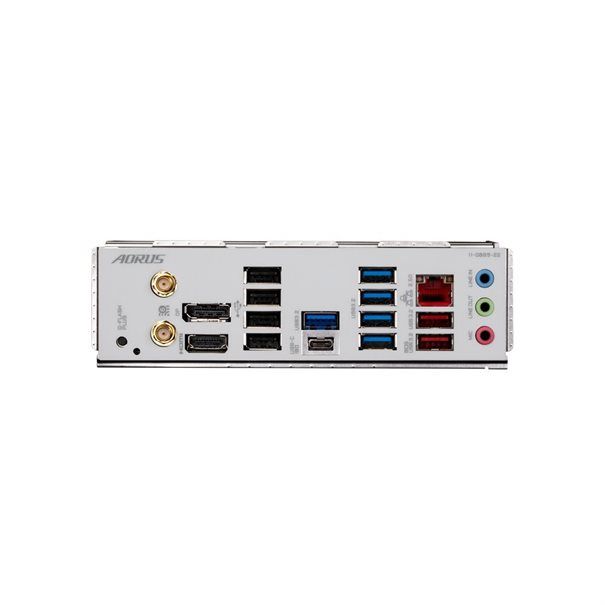

Rear panel I/O ports | |
DisplayPort version | 1.4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
WiFi-AP antenna jack | 2 |
HDMI ports quantity | 1 |
USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
Storage controllers | |
RAID levels | 0, 1, 5, 10 |
Supported storage drive types | HDD & SSD |
Storage interfaces | M.2, SATA III |
RAID support | Yes |
