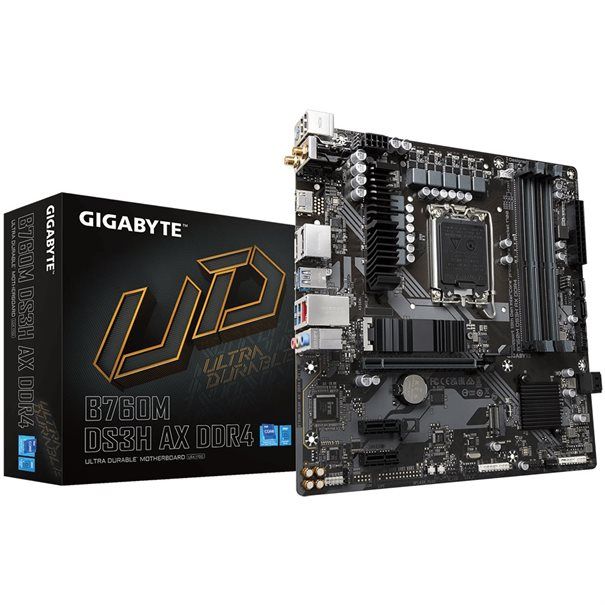

GIGA B760M DS3H AX DDR4 S1700/DDR4/µATX
159,03 € με ΦΠΑ
GIGA B760M DS3H AX DDR4 S1700/DDR4/µATX
8 σε απόθεμα
Συνδέσου για τιμές χονδρικής
Διαθέσιμο
Παράδοση 4 έως 10 εργάσιμες ημέρες
Περιγραφή
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| ECC | Y |
| Number of memory slots | 4 |
| Non-ECC | Y |
| Supported memory clock speeds | 2133.2400.2666.2933.3000.3200.3300.3333.3400.3466.3600.3666.3733.3800.3866.4000.4133.4266.4300.4400.4500.4600.4700.4800.4933.5000.5133.5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Y |
| Network | |
| Ethernet LAN | Y |
| Bluetooth | 5.2 Y |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | RZ608 |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet interface | 2.5 Gigabit Ethernet |
| Technical details | |
| Vendor | Gigabyte |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton Internet Security |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 2 |
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Graphics | |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Y |
| Features | |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 Express |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Component for | PC |
| Internal I/O | |
| Front panel connector | Y |
| 12V power connector | Y |
| USB 2.0 connectors | 2 |
| S (B 2.0 connectors – PDIF out connector – S power connector (8-pin) – B 3.2 Gen 1 (3.1 Gen 1) connectors – mber of SATA III connectors) | 2 – Y – Y – 1 – 4 |
| CPU fan connector | Y |
| ATX Power connector (24-pin) | Y |
| Front panel audio connector | Y |
| TPM connector | Y |
| RGB LED pin header | Y |
| EPS power connector (8-pin) | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Rear panel I/O ports | |
| DisplayPort version | 1.2 |
| PS (2 ports quantity) | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| Microphone in | Y |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, PCI Express 4.0, SATA III |
| RAID support | Y |
| Number of storage drives supported | 6 |
