Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) |
Processor socket | LGA 1851 (Socket V1) |
Supported processor sockets | LGA 1851 |
Memory | |
Memory slots type | DIMM |
Maximum internal memory | 256 GB |
Number of memory slots | 4 |
Supported memory clock speed (max) | 6400 MHz |
Maximum internal memory per slot | 64 GB |
ECC сompatibility | ECC & Non-ECC |
Supported memory clock speeds | 5600.6400 MHz |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Unbuffered memory | Yes |
Network | |
Ethernet LAN | Yes |
LAN controller | Realtek RTL8125 |
Wi-Fi | No |
Ethernet interface | 2.5 Gigabit Ethernet |
Technical details | |
Vendor | Gigabyte |
Warranty period | 3 year(s) |
Packaging content | |
Screws included | Yes |
Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Batteries included | Yes |
Expansion slots | |
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 4 |
PCI Express x16 (Gen 5.x) slots | 1 |
1st M.2 largest key size | 25110 |
1st M.2 highest PCI Express generation | 5.0 |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
ACPI version | 5.0 |
Clear CMOS jumper | Yes |
Weight & dimensions | |
Height | 35 mm |
Width | 305 mm |
Depth | 244 mm |
Battery | |
Number of battery cells | 1 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Lithium weight per battery | 0.0700 g |
Battery weight | 3 g |
Battery type | CR2032 |
Other features | |
Weight | 2000 g |
Graphics | |
Maximum resolution | 4096 x 2160 pixels |
Parallel processing technology support | Not supported |
DirectX version | 12.0 |
HDCP | Yes |
Features | |
Motherboard form factor | ATX |
Product colour | Brown |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Motherboard chipset | Intel B860 |
PC health monitoring | Fan, Temperature, Voltage, Water cooling |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Power source type | ATX |
Motherboard chipset family | Intel |
Component for | PC |
Logistics data | |
Products per shipping (inner) case | 1 pc(s) |
Country of origin | China |
Internal I/O | |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
Front panel connector | Yes |
USB 2.0 connectors | 2 |
S (B 3.2 Gen 2 (3.1 Gen 2) connectors – B 2.0 connectors – PDIF out connector – mber of EPS power connectors (8-pin) – S power connector (8-pin) – B 3.2 Gen 1 (3.1 Gen 1) connectors – mber of SATA III connectors – rial port headers) | 0 – 2 – Yes – 1 – Yes – 2 – 4 – 1 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of chassis fan connectors | 4 |
Front panel audio connector | Yes |
TPM connector | Yes |
RGB LED pin header | Yes |
Number of CPU fan connectors | 2 |
Number of EPS power connectors (8-pin) | 1 |
EPS power connector (8-pin) | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 4 |
Serial port headers | 1 |

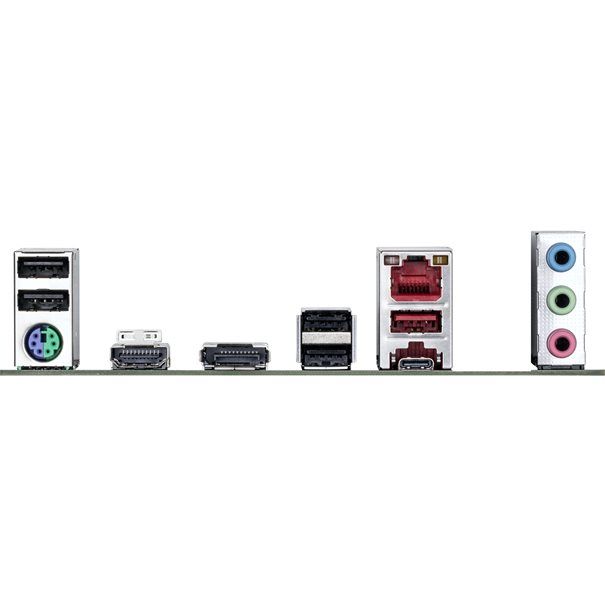

Rear panel I/O ports | |
DisplayPort version | 2.1 |
PS (2 ports quantity) | 1 |
Line-in | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
Headphone outputs | 1 |
Microphone in | Yes |
VGA (D-Sub) ports quantity | 0 |
DVI-D ports quantity | 0 |
HDMI ports quantity | 1 |
USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
Storage controllers | |
RAID levels | 0, 1, 5, 10 |
Supported storage drive types | HDD & SSD |
Storage interfaces | M.2, SATA III |
Number of HDDs supported | 4 |
RAID support | Yes |
Number of storage drives supported | 6 |
Packaging data | |
Package depth | 270 mm |
Package height | 80 mm |
Package width | 335 mm |
