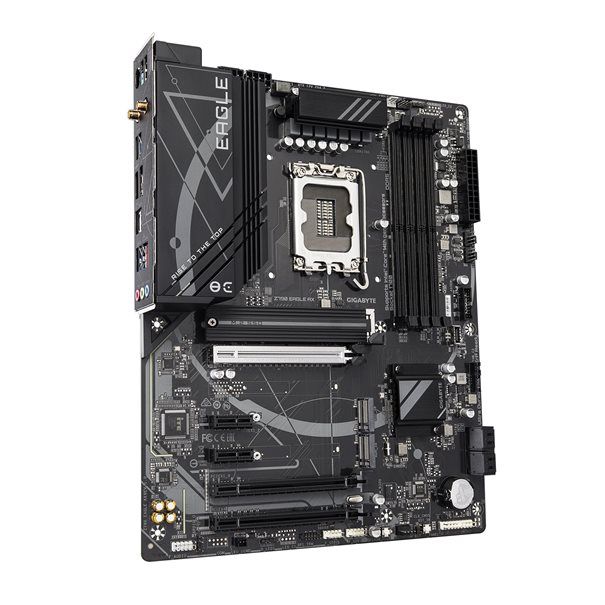

GIGA Z790 EAGLE AX S1700/DDR5/ATX
244,40 € με ΦΠΑ
GIGA Z790 EAGLE AX S1700/DDR5/ATX
3 σε απόθεμα
Συνδέσου για τιμές χονδρικής
Διαθέσιμο
Παράδοση 4 έως 10 εργάσιμες ημέρες
Περιγραφή
| Processor | |
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum internal memory supported by processor | 192 GB |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Maximum internal memory | 192 GB |
| ECC | Yes |
| Number of memory slots | 4 |
| Non-ECC | Yes |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 4400.4800.5200.5400.5600.5800.6000.6200.6400.6600.6800.7000.7200.7400.7600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Network | |
| Ethernet LAN | Yes |
| Bluetooth | 5.3 Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet interface | 2.5 Gigabit Ethernet |
| Technical details | |
| Vendor | Gigabyte |
| Warranty period | 3 year(s) |
| Packaging content | |
| Antenna included | Yes |
| Cables included | SATA |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Weight & dimensions | |
| Height | 35 mm |
| Ancho | 305 mm |
| Depth | 244 mm |
| Battery | |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Lithium weight per battery | 0.0700 g |
| Battery weight | 3 g |
| Battery type | CR2032 |
| Graphics | |
| Discrete graphics support | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Features | |
| Motherboard form factor | ATX |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel Z790 Express |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Internal I/O | |
| Thunderbolt headers | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |

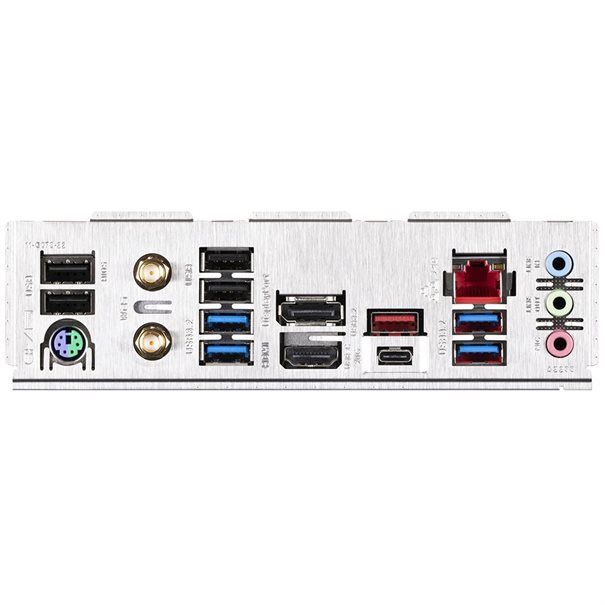

| Rear panel I/O ports | |
| DisplayPort version | 1.2 |
| PS (2 ports quantity) | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S (B connector type – B 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity – B 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity – B 2.0 ports quantity – PDIF out port – B 3.2 Gen 2×2 Type-C ports quantity) | USB Type-A, USB Type-C – 4 – 1 – 2 – Yes – 1 |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Packaging data | |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package width | 335 mm |
| Package weight | 1807.5 g |
