Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel Core Ultra (Series 2) |
Maximum internal memory supported by processor | 256 GB |
Processor socket | LGA 1851 (Socket V1) |
Supported processor sockets | LGA 1851 |
Memory | |
Memory slots type | DIMM |
Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
Maximum internal memory | 256 GB |
Number of memory slots | 4 |
Supported memory clock speed (max) | 9500 MHz |
ECC сompatibility | Non-ECC |
Supported memory clock speeds | 5600.5800.6000.6200.6400.6600.7000.7200.7400.7600.7800.7900.7950.8000.8200.8266.8400.8600.9500 MHz |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Network | |
Ethernet LAN | Yes |
Bluetooth | 5.4 Yes |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
WLAN controller model | Intel Wi-Fi 7 BE200 |
Wi-Fi | Yes |
Wi-Fi standards | Wi-Fi 7 (802.11be) |
Ethernet interface | 10 Gigabit Ethernet |
Technical details | |
Vendor | Gigabyte |
Warranty period | 3 year(s) |
Packaging content | |
Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Batteries included | Yes |
Expansion slots | |
Number of M.2 (M) slots | 5 |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
ACPI version | 5.0 |
Clear CMOS button | Yes |
Clear CMOS jumper | Yes |
Weight & dimensions | |
Height | 35 mm |
Width | 305 mm |
Depth | 244 mm |
Battery | |
Number of battery cells | 1 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Lithium weight per battery | 0.0700 g |
Battery weight | 3 g |
Battery type | CR2032 |
Other features | |
Weight | 2190 g |
Graphics | |
DirectX version | 12.0 |
Features | |
Motherboard form factor | ATX |
Product colour | Black |
Audio output channels | 5.1 channels |
Motherboard chipset | Intel Z890 |
PC health monitoring | Fan, Temperature, Voltage |
Windows operating systems supported | Windows 11 x64 |
Motherboard chipset family | Intel |
Component for | PC |
Logistics data | |
Products per shipping (inner) case | 1 pc(s) |
Country of origin | China |
Internal I/O | |
Total number of SATA connectors | 4 |
12V power connector | Yes |
USB 2.0 connectors | 2 |
ATX Power connector (24-pin) | Yes |
TPM connector | Yes |
RGB LED pin header | Yes |
USB 3.2 Gen 2×2 connectors | 1 |
EPS power connector (8-pin) | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 4 |

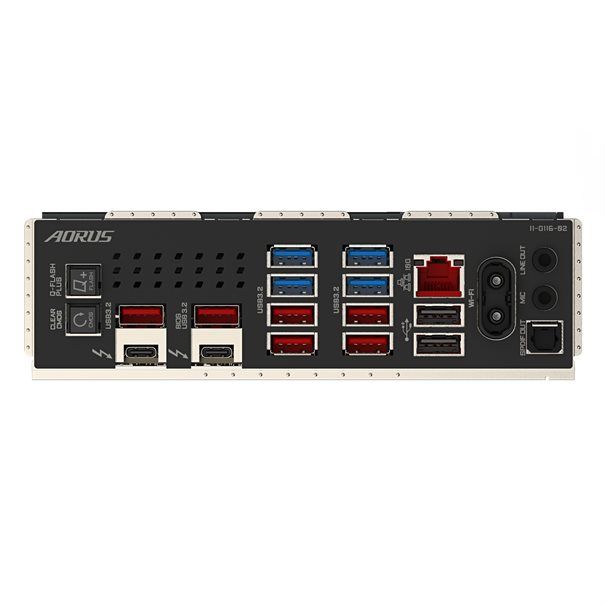

Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
Microphone in | Yes |
S (B 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity – B 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity – B 2.0 ports quantity – PDIF out port) | 4 – 6 – 2 – Yes |
HDMI ports quantity | 1 |
DisplayPorts quantity | 2 |
Thunderbolt ports quantity | 2 |
Storage controllers | |
RAID levels | 0, 1, 5, 10 |
Supported storage drive types | HDD & SSD |
Storage interfaces | M.2, SATA III |
Number of HDDs supported | 9 |
RAID support | Yes |
Number of storage drives supported | 4 |
Packaging data | |
Package depth | 270 mm |
Package height | 80 mm |
Package width | 335 mm |
Package weight | 2510 g |
