Technical details | |
Vendor | QNAP |
Harmonized System (HS) code | 84714100 |
Performance | |
Type | NAS |
Device class | Small & Medium Business |
Backup function | Y |
Backup features | Cloud, iSCSI LUN |
Built-in FTP server | Y |
System log | Y |
Hot spare | Y |
Disk scan | Y |
Share folder | CIFS/SMB |
Buzzer | Y |
Snapshot | Y |
Access Control List (ACL) | Y |
Reset button | Y |
Security algorithms | HTTPS, SSH, 256-bit AES, FIPS 140-2 |
Multilingual support | Y |
On (off switch) | Y |
S.M.A.R.T. support | Y |
Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
Design | |
Chassis type | Rack (1U) |
LED indicators | HDD, Status, Power, LAN |
Product colour | Black |
Number of fans | 2 fan(s) |
Cooling type | Active |
Fan diameter | 40 mm |
Storage | |
Number of storage drives supported | 4 |
Storage interfaces | Serial ATA,Serial ATA II,Serial ATA III |
Supported storage drive types | HDD, SSD |
RAID levels | 1 |
Storage drives installed | N |
Installed storage drive type | N |
Hot-swap drive bays | Y |
Supported file systems | FAT32, exFAT, HFS+, NTFS, ext3, ext4 |
Online RAID migration | Y |
Online RAID expansion | Y |
Disk roaming | Y |
RAID rebuild | Y |
RAID support | Y |
Storage drive sizes supported | 2.5.3.5 ” |
Memory | |
Internal memory | 8 GB |
Maximum RAM supported | 8 GB |
Flash memory | 4000 MB |
Power | |
Redundant power supply (RPS) support | Y |
Fan voltage | 12 V |
Power supply unit (PSU) capacity | 250 W |
Power consumption (HDD standby) | 37.469 W |
Power consumption (typical) | 51.404 W |
Number of power supply units | 2 |
AC input voltage | 100 – 240 V |
Power supply location | Built-in |

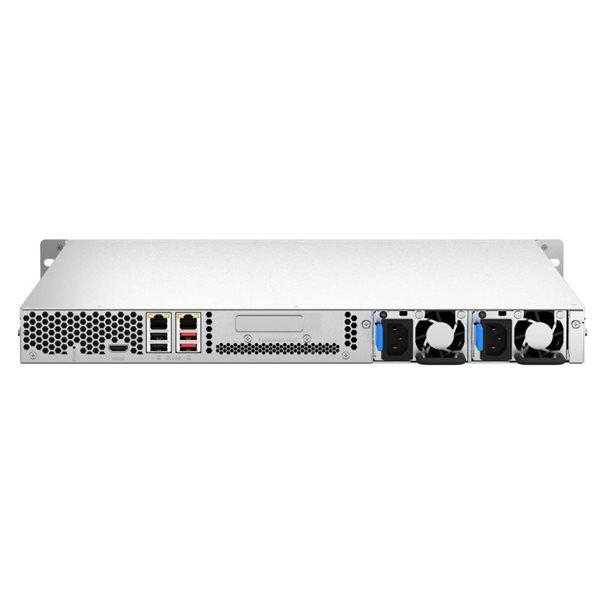

Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 2 |
USB port | Y |
HDMI ports quantity | 1 |
HDMI version | 1.4b |
Concurrent connections | 1500 |
Software | |
Operating system | QNAP Turbo System |
Operating system version | 5.0.1 |
Windows operating systems supported | Windows 10, Windows 8, Windows 7, Windows 11 |
Mac operating systems supported | Y |
Linux operating systems supported | Y |
Server operating systems supported | Windows Server 2019, Windows Server 2012 R2, Windows Server 2008 R2, Windows Server 2016, Windows Server 2012 |
Other operating systems supported | Solaris 10 |
Network | |
Ethernet LAN | Y |
Dynamic DNS (DDNS) | Y |
Wake-on-LAN ready | Y |
Jumbo frames support | Y |
DHCP client | Y |
DHCP server | Y |
Ethernet LAN data rates | 10.1000.2500.100 Mbit/s |
iSCSI support | Y |
Processor | |
Processor manufacturer | Intel |
Processor family | Intel® Celeron® |
Processor cores | 4 |
Processor threads | 4 |
Processor boost frequency | 2.9 GHz |
On-board graphics card model | Intel® UHD Graphics |
Packaging content | |
Number of screws | 84 |
Cables included | AC, LAN (RJ-45) |
Power cables quantity | 2 |
Weight & dimensions | |
Height | 43.3 mm |
Width | 430 mm |
Depth | 479 mm |
Package weight | 10100 g |
Weight | 8120 g |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Storage relative humidity (H-H) | 5 – 95 % |
Operating relative humidity (H-H) | 5 – 95 % |
Storage temperature (T-T) | -20 – 70 °C |
