Technical details | |
Vendor | Synology |
Sustainability compliance | Y |
Sustainability certificates | CE, RoHS |
Performance | |
Type | NAS |
Device class | Small & Medium Business |
Backup function | Y |
Backup features | Cloud, iSCSI LUN |
Noise level | 23.6 dB |
Built-in FTP server | Y |
System log | Y |
Snapshot | Y |
Card reader integrated | N |
Access Control List (ACL) | Y |
Reset button | Y |
Security algorithms | AES |
Management protocols | SNMP |
Multilingual support | Y |
On (off switch) | Y |
Browser supported | Google Chrome Firefox Microsoft Edge Safari |
Design | |
Chassis type | Tower |
Kensington Lock | Y |
Cable lock slot type | Kensington |
LED indicators | Y |
Product colour | Black |
Built-in speaker(s) | N |
Number of fans | 2 fan(s) |
Cooling type | Active |
Fan diameter | 120 mm |
Built-in display | N |
Storage | |
Number of storage drives supported | 8 |
Storage interfaces | Serial ATA |
Supported storage drive types | HDD, SSD |
RAID levels | 1 |
Storage drives installed | N |
Installed storage drive type | N |
Hot-swap drive bays | Y |
Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
Online RAID migration | Y |
Online RAID expansion | Y |
Number of M.2 (M & B) slots | 2 |
RAID support | Y |
Storage drive sizes supported | 2.5.3.5.M.2 ” |
Memory | |
Internal memory | 8 GB |
Maximum RAM supported | 32 GB |
ECC | Y |
Internal memory type | DDR4 |
Memory slots | 2 |
Memory form factor | SO-DIMM |
Power | |
Redundant power supply (RPS) support | N |
Power supply unit (PSU) capacity | 250 W |
Power consumption (typical) | 87.93 W |
Number of power supply units | 1 |
AC input frequency | 50 / 60 Hz |
AC input voltage | 100 – 240 V |
Power supply location | Built-in |

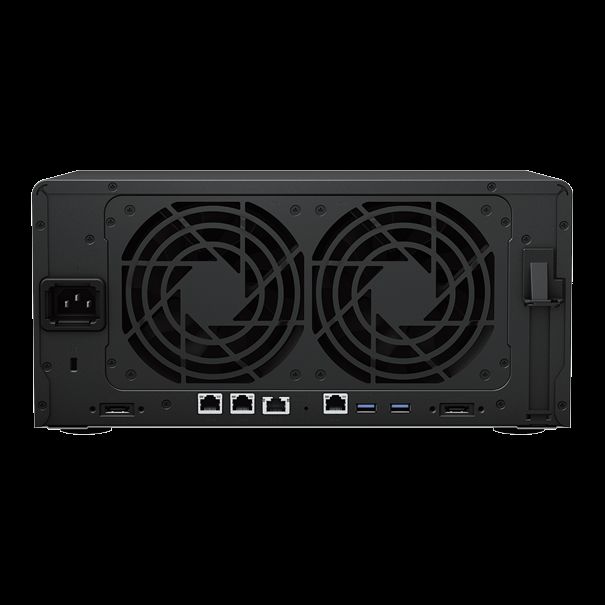

Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
PCI Express x8 (Gen 3.x) slots | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB port | Y |
eSATA ports quantity | 2 |
Software | |
Operating system | DiskStation Manager |
Operating system version | 7.1.1 |
Server operating systems supported | Windows Server 2019 |
Network | |
Ethernet LAN | Y |
Ethernet LAN data rate supported (max) | 10000 Mbit/s |
Link aggregation | Y |
Ethernet LAN data rates | 10.100.1000.10000 Mbit/s |
Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
iSCSI support | Y |
Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
Processor | |
Processor manufacturer | AMD |
Processor frequency | 3.35 GHz |
Processor family | AMD Ryzen |
Processor model | V1780B |
Processor cores | 4 |
Number of processors supported | 1 |
Processor boost frequency | 3.6 GHz |
Packaging content | |
Cables included | AC, LAN (RJ-45) |
Power cables quantity | 1 |
Weight & dimensions | |
Height | 166 mm |
Width | 343 mm |
Depth | 243 mm |
Weight | 6200 g |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Storage relative humidity (H-H) | 5 – 95 % |
Operating relative humidity (H-H) | 5 – 95 % |
Storage temperature (T-T) | -20 – 60 °C |
Certificates | |
Certification | FCC BSMI VCCI RCM EAC CCC KC |
