Technical details | |
Vendor | Synology |
Performance | |
Type | NAS |
Device class | Small & Medium Business |
Backup function | Y |
Backup features | Cloud, iSCSI LUN |
Number of users | 16000 user(s) |
Noise level | 50.2 dB |
System log | Y |
Hot spare | Y |
Share folder | CIFS/AFP/FTP |
Operating system | DiskStation Manager |
Web-based management | Y |
Access Control List (ACL) | Y |
Reset button | Y |
Security algorithms | HTTPS,SSH,SSL/TLS |
Multilingual support | Y |
On (off switch) | Y |
S.M.A.R.T. support | Y |
Browser supported | Chrome, Firefox, Internet Explorer 10, Safari |
Windows operating systems supported | Windows 10,Windows 7 |
Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra |
Server operating systems supported | Windows Server 2012,Windows Server 2012 R2 |
Mac compatibility | Y |
Design | |
LED indicators | HDD, Power |
Product colour | Black |
Number of fans | 4 fan(s) |
Cooling type | Active |
Fan diameter | 80 mm |
Storage | |
Number of storage drives supported | 12 |
Storage interfaces | Serial ATA,Serial ATA II,Serial ATA III |
Storage drive interface | Serial ATA II, Serial ATA III |
Supported storage drive types | HDD, SSD |
RAID levels | 0 1 5 6 10 JBOD |
Storage drives installed | N |
Maximum supported storage capacity | 144 TB |
Installed storage drive type | N |
Hot-swap drive bays | Y |
Supported file systems | BTRFS,FAT,HFS+,NTFS,ext3,ext4 |
RAID support | Y |
Storage drive size | 2.5/3.5 ” |
Storage drive sizes supported | 2.5.3.5 ” |
Memory | |
Maximum RAM supported | 64 GB |
RAM type | DDR4 |
Memory clock speed | 2133 MHz |
Memory slots | 4 |
RAM capacity | 8 GB |
Power | |
Redundant power supply (RPS) support | N |
Power supply unit (PSU) capacity | 500 W |
Power consumption (HDD standby) | 55.05 W |
Power consumption (typical) | 142.76 W |
Number of power supply units | 1 |
AC input frequency | 50/60 Hz |
AC input voltage | 100 – 240 V |
Power supply location | Built-in |

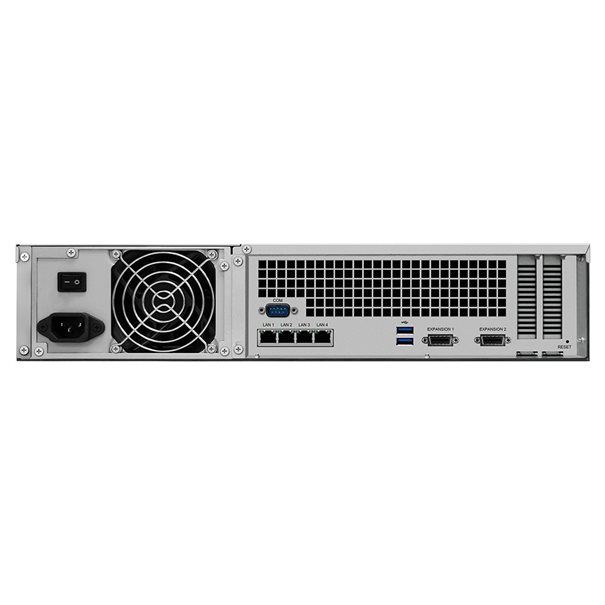

Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
PCI Express x8 (Gen 3.x) slots | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB port | Y |
Network | |
Ethernet LAN | Y |
Wake-on-LAN ready | Y |
Wi-Fi | N |
Link aggregation | Y |
Ethernet LAN data rates | 10.100.1000 Mbit/s |
Supported network protocols | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) |
iSCSI support | Y |
Processor | |
Processor cache | 6 MB |
Scalability | 1S |
CPU configuration (max) | 1 |
PCI Express configurations | 1×16,1×4,1×8 |
Processor frequency | 2.40 GHz |
Thermal Design Power (TDP) | 45 W |
Processor lithography | 14 nm |
Processor codename | Broadwell |
Processor family | Intel® Xeon® |
Maximum internal memory supported by processor | 128 GB |
ECC supported by processor | Y |
Processor package size | 37.5 x 37.5 mm |
Conflict-Free processor | Y |
Processor socket | BGA 1667 |
Processor ARK ID | 91202 |
Stepping | V2 |
Processor model | D-1521 |
Processor cores | 4 |
Processor code | SR2DF |
Processor threads | 8 |
PCI Express slots version | 2.0, 3.0 |
Processor operating modes | 64-bit |
Processor boost frequency | 2.70 GHz |
Packaging content | |
Cables included | AC |
Quick installation guide | Y |
Weight & dimensions | |
Height | 88 mm |
Width | 430.5 mm |
Depth | 692 mm |
Weight | 14500 g |
Processor special features | |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Enhanced Intel SpeedStep Technology | Y |
Execute Disable Bit | Y |
Idle States | Y |
Thermal Monitoring Technologies | Y |
Intel Trusted Execution Technology | Y |
Intel Enhanced Halt State | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Embedded options available | N |
Intel TSX-NI | Y |
Intel® Secure Key | Y |
Intel 64 | Y |
Intel® OS Guard | Y |
UART | Y |
Intel Virtualization Technology for Directed I (O (VT-d)) | Y |
Maximum number of PCI Express lanes | 32 |
Intel Virtualization Technology (VT-x) | Y |
Memory types supported by processor | DDR3-SDRAM,DDR4-SDRAM |
Memory channels supported by processor | Dual |
Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
Intel® Turbo Boost Technology | 2.0 |
Operational conditions | |
Operating temperature (T-T) | 5 – 35 °C |
Operating altitude | 0 – 5000 m |
Operating relative humidity (H-H) | 5 – 95 % |
Storage temperature (T-T) | -20 – 60 °C |
Certificates | |
Certification | EAC, VCCI, CCC, RCM, FCC, CE, BSMI |
RoHS compliance | Y |
