Για τιμές χονδρικής ,έκπτωση έως και 20%

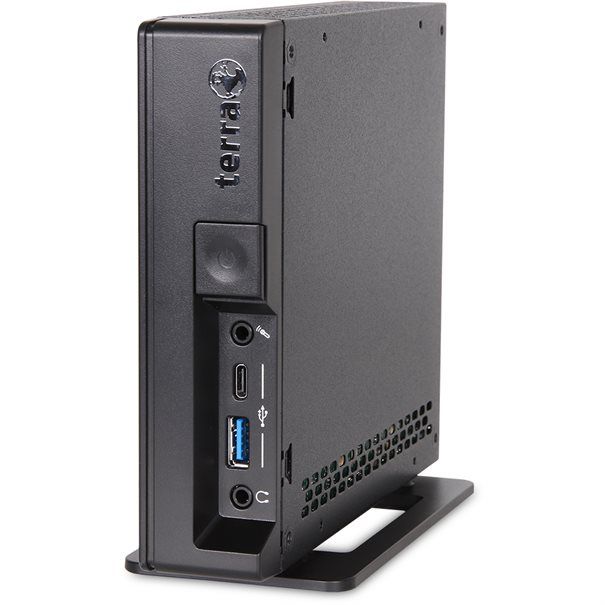

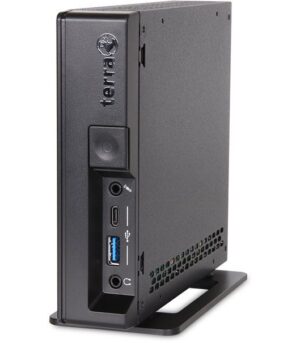

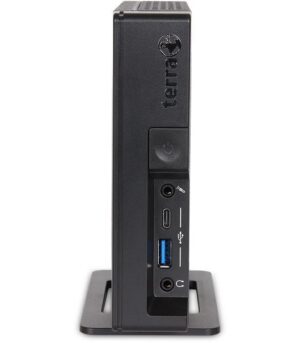

TERRA PC-Mini 3560 Fanless i3
828,63 € με ΦΠΑ
TERRA PC-Mini 3560 Fanless i3
3 σε απόθεμα
Συνδέσου για τιμές χονδρικής
Διαθέσιμο
Παράδοση 4 έως 10 εργάσιμες ημέρες
Περιγραφή
Fanless/ passive cooled Mini-PC. Player with Intel Pentium processor and serial COM port. This device is supporting 4K-UHD, Dual-Monitor- Support. It is ideal for Digital-Signage- and Point-Of-Sale-Applications. With the optional purchasable VESA-mount you can easily assemblage the device to a TFT-display.
(Product illustration is an example picture. USB Type-C is an optional extra.)
| General | |
| Processor model | Intel® Processor Core i3 N305/ 6M Cache, up to 3.80 GHz |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® Office 365 user |
| Processor | |
| Processor family | Pentium |
| Processor cores | Okta-Core (8-Core) |
| Processor socket | Embedded in SOC |
| Number of processors | 1 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 8 GB |
| Memory clock speed | PC5600 MHz |
| Internal memory type | DDR5 |
| Memory slots | 1 pc(s) |
| Storage | |
| Total storage capacity | 240 GB |
| HDD interface | 1x M.2 PCIe 2230/2242/2280 (Key-M ,PCIe x2 Gen3/NVMe SSD modules) |
| SSD interface | SATA-3 |
| SSD capacity | 240 GB |
| HDD capacity | 1 x 240 GB – SSD |
| Number of storage drives supported | 1 pc(s) |
| Storage media | SSD M.2 |
| Performance | |
| Series | Industry Business |
| Noise level | 0 dB |
| Audio output channels | Stereo |
| Motherboard chipset | Alder Lake N SoC |
| Design | |
| Chassis type | Mini format |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar 8.0. EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required)/ 24-7 ready SSD required |
| Keyboard form factor | Optional |
| Keyboard | |
| Keyboard language | Keyboard optional |
| Device interface | USB |
| Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Packaging content | |
| Included Accessories | Quick Install Guide (DE/ EN), Driver CD, power supply, Europlug CEE7/16 1.8 m, Pedestal for vertical use Option: VESA mounting Kit |
| Weight & dimensions | |
| Height | 3.6 (4.2) cm |
| Width | 14.7 (18.8) cm |
| Depth | 16.5 (17.5) cm |
| Weight | 0.9 kg |
| Other features | |
| Interface | Front: 1x USB 3.2 Type A, 1x USB-C 3.2, 1x Audio Rear: 1x COM, 2x DP, 4x USB 3.2 Type A, 2x RJ45, DC-in, Kensington |
| Compatible operating systems | Windows 10 (64-Bit) Windows 11 (64-Bit) Unsupported OS by WAG: Linux (64-Bit) |
| Motherboard manufacturer | Kontron K3921-N6 (Core i3 N305) Industrial Series 24-7 ready Made in Germany |
| Cooling type | Passive – fanless |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required) |
| Special features | TPM 2.0, Fanless |
| Mouse | |
| Mouse included | Optional |
| Graphics | |
| On-board graphics adapter memory | Dynamisch GB |
| On-board graphics adapter maximum resolution | Display Port 1.2 max. 4096×2160 @ 60Hz |
| Graphics card | Intel® UHD Graphics |
| Graphics adapter ports | 2x Display Port (DP), 1x DP via USB-C supportsTriple-Monitoring |
| Power | |
| Power source | External fanless power supply |
| Power consumption (standby) | Ø 2.0 Watt (Sleep Mode S3. Suspend to RAM. WOL activated) 0.2 Watt Soft off (S5 Mode) W |
| Maximum input power | 24 W |
| Nominal power | Ø 6 Watt Long Idle-Mode Ø 27 kWh a year (TEC = Typical Energy Consumption) Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Recommended humidity operating range | 10 – 80% (non-condensing) |
| Network | |
| Ethernet LAN | Netzwerkadapter – integriert |
| LAN controller | 1x Realtek RTL8111H, 10/100/1000 Mbps, WOL/PXE 1x Realtek RTL8125BG-CG with 10/100/1000/2500 MBit/s |
| Wi-Fi standards | Intel AX201 Wi-Fi 6/ /Bluetooth 1x portable external antennas 802.11ax Bands: 2.4 GHz + 5 GHz (Dual-Band) |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax Bluetooth 5.2 |
| Optical drive | |
| Optical drive type | Ohne optisches Laufwerk |
