Network | |
Cabling technology | 10/100Base-T(X) |
Ethernet LAN | Y |
Receiver sensitivity | 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
VPN support | PPTP, L2TP, IPSec |
Dynamic DNS (DDNS) | Y |
VPN tunnels quantity | 10 |
Ethernet LAN interface type | Fast Ethernet |
VPN Passthrough | Y |
Ethernet LAN data rates | 10.100 Mbit/s |
Port forwarding | Y |
Technical details | |
Vendor | TP-LINK |
Ports & interfaces | |
Memory card slot(s) | N |
Ethernet LAN (RJ-45) ports | 3 |
DC-in jack | Y |
USB port | N |
Antenna | |
Antenna type | Internal & external |
Transmit power | CE: |
Antennas quantity | 2 |
Detachable antenna(s) | Y |
Weight & dimensions | |
Height | 33.5 mm |
Width | 174 mm |
Depth | 124.5 mm |
Design | |

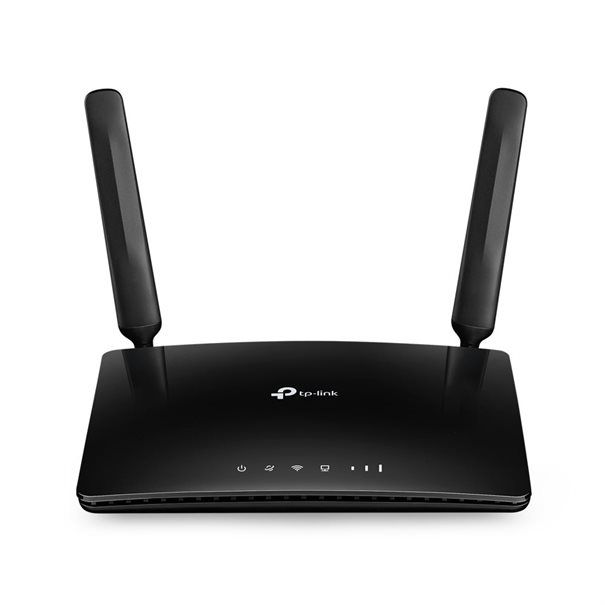

Product type | Tabletop router |
LED indicators | LAN, Power, Status, WLAN |
Wall mountable | Y |
Product colour | Black |
On (off switch) | Y |
Mobile network | |
4G bands supported | 800.900.1800.2100.2600 MHz |
4G | Y |
4G standard | LTE |
mobile standards | DC-HSPA+,HSPA,HSPA+,UMTS |
2G standards | Edge, GPRS, GSM |
Mobile network generation | 4G |
3G | Y |
GSM bands supported | 850.900.1800.1900 MHz |
UMTS bands supported | 900.2100 MHz |
Features | |
Certification | CE, RoHS |
WAN connection | |
WAN connection type | RJ-45 |
DSL WAN | N |
Ethernet WAN | Y |
SIM card slot | Y |
3G (4G USB modem compatibility) | N |
Power | |
Output voltage | 12 V |
Output current | 1.5 A |
Power source type | DC |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Storage relative humidity (H-H) | 5 – 90 % |
Operating relative humidity (H-H) | 10 – 90 % |
Storage temperature (T-T) | -40 – 70 °C |
Protocols | |
DHCP client | Y |
DHCP server | Y |
Supported network protocols | IPv4, IPv6 |
Packaging data | |
AC adapter included | Y |
Cables included | LAN (RJ-45) |
Package depth | 223 mm |
Package height | 70 mm |
Package width | 307 mm |
Package type | Box |
Quick installation guide | Y |
Security | |
Firewall | Y |
Guest access | Y |
Stateful Packet Inspection (SPI) | Y |
Access Control List (ACL) | Y |
Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
DMZ support | Y |
DoS attack prevention | Y |
System requirements | |
Windows operating systems supported | Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
Mac operating systems supported | macOS |
Linux operating systems supported | Y |
Mac compatibility | Y |
Wireless LAN features | |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
WLAN data transfer rate (max) | 867 Mbit/s |
WLAN data transfer rate (first band) | 450 Mbit/s |
WLAN data transfer rate (second band) | 867 Mbit/s |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
Management features | |
Quality of Service (QoS) support | Y |
Web-based management | Y |
Reset button | Y |
WPS push button | Y |
