Technical details | |
Vendor | TP-LINK |
Packaging content | |
Quantity per pack | 5 pc(s) |
Quick start guide | Yes |
Mounting kit | Yes |
Ports & interfaces | |
USB 2.0 ports quantity | 0 |

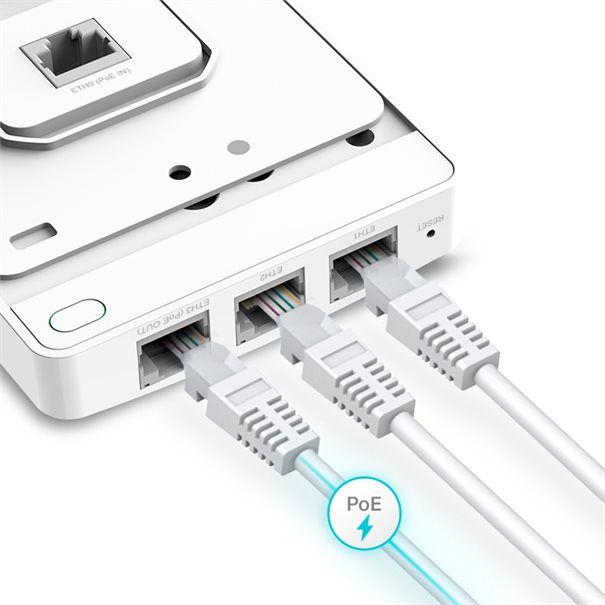

Ethernet LAN (RJ-45) ports | 4 |
Antenna | |
Antenna type | Internal |
Antenna gain level (max) | 4 dBi |
Antennas quantity | 4 |
Weight & dimensions | |

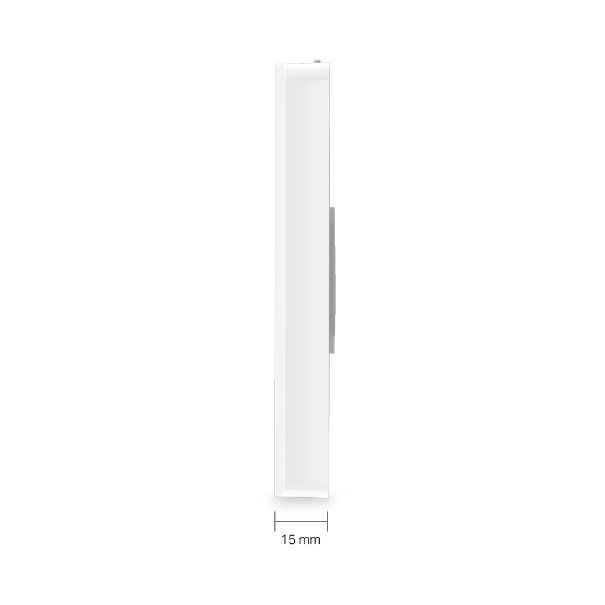

Height | 20 mm |
Width | 143 mm |
Depth | 86 mm |
Design | |
Kensington Lock | Yes |
LED indicators | Power |
Product colour | White |
Reset button | Yes |
On (off switch) | Yes |

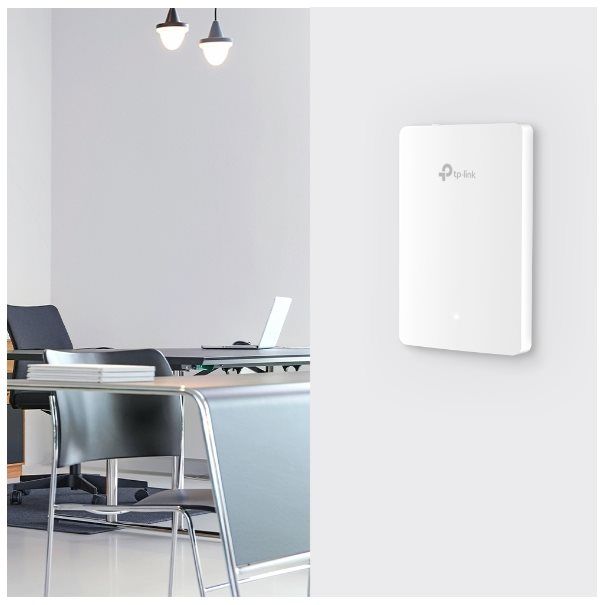

Placement | Wall |
Performance | |
Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Features | |
Maximum data transfer rate | 1774 Mbit/s |
Frequency band | 2.4 – 5 GHz |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
2.4 GHz | Yes |
5 GHz | Yes |
Wireless isolation | Yes |
MIMO | Yes |
Quality of Service (QoS) support | Yes |
Automatic channel scanning | Yes |
Band steering | Yes |
Airtime Fairness (ATF) | Yes |
MIMO type | Multi User MIMO |
Rate limiting | Yes |
Ethernet LAN data rates | 10.100.1000 Mbit/s |
Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
Transmitting power (FCC) | 21 dBm |
Transmitting power (CE) | 23 dBm |
BeamForming | Yes |
6 GHz | No |
Automatic channel selection | Yes |
VLAN support | Yes |
Cabling technology | 10/100/1000Base-T(X) |
Power | |
Power over Ethernet (PoE) | Yes |
Power consumption (typical) | 10 W |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Storage relative humidity (H-H) | 5 – 90 % |
Operating relative humidity (H-H) | 10 – 90 % |
Storage temperature (T-T) | -40 – 70 °C |
Protocols | |
STelnet using SSH v2 | Yes |
Packaging data | |
Package depth | 495 mm |
Package height | 210 mm |
Package width | 385 mm |
Package weight | 330 g |
Security | |
Number of SSID supported | 16 |
MAC address filtering | Yes |
Access Control List (ACL) | Yes |
Remote Authentication Dial-In User Service (RADIUS) | Yes |
Service Set Identifier (SSID) features | Multiple SSIDs |
Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
Certificates | |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Management features | |
Web-based management | Yes |
Firmware upgradeable | Yes |
Syslog | Yes |
